Planet LN1130 LoRa Node – Price in Qatar
Planet LN1130 LoRa Node – Price in Qatar

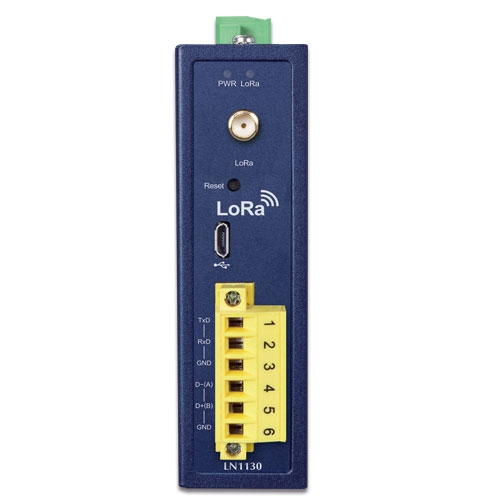

Industrial IP30 LoRa Node Controller (Modbus RS232, RS485, EU868/US915 Sub 1G).\
- 1 x micro USB port console
- 1 x RS232 serial interface
- 1 x RS485 serial interface
- LED indicators for the LoRa and Power status
- 9 ~ 48V DC and 24V AC input voltage range
- Supports LoRaWAN protocol
Product Description
| Wireless Transmission | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Technology | LoRaWAN | ||||||||||||||
| Antenna Connector | 1 × 50 Ω SMA Connectors (Center Pin: SMA Female) | ||||||||||||||
| Frequency | IN865, EU868, RU864, US915, AU915, KR920, AS923 | ||||||||||||||
| Work Mode | OTAA/ABP Class A/B/C | ||||||||||||||
| Data Interfaces | |||||||||||||||
| Interface Type | 6-pin removable terminal block | ||||||||||||||
| Serial Port |
|
||||||||||||||
| Others | |||||||||||||||
| Configuration Port | 1 × Micro USB | ||||||||||||||
| LED Indicators | 1 × PWR, 1 × LoRa | ||||||||||||||
| Built-in Sensor | Temperature sensor | ||||||||||||||
| Physical Characteristics | |||||||||||||||

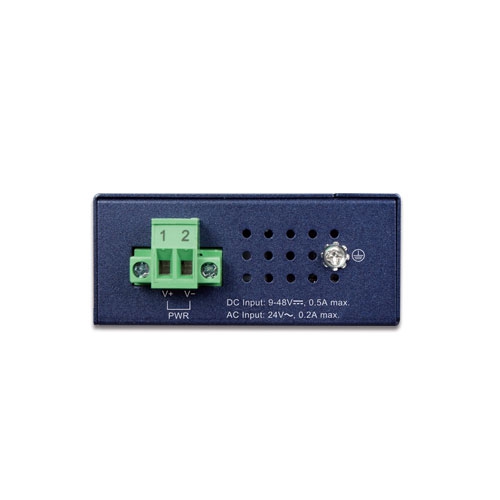

| Power Connector | 2-pin removable terminal block | ||||||||||||||
| Power Supply | 9 ~ 48V DC/ 24V AC | ||||||||||||||
| Ingress Protection | IP30 | ||||||||||||||
| Operating Temperature | -40°C to +75°C | ||||||||||||||
| Relative Humidity | 5% to 95% (non-condensing) | ||||||||||||||
| Dimensions | 33 x 70 x 104 mm | ||||||||||||||
| Weight | 218 g | ||||||||||||||
| Installation | DIN-rail or wall mounting | ||||||||||||||
| Standards Conformance | |||||||||||||||
| Regulatory Compliance | CE, FCC | ||||||||||||||
