Planet LN1140 LoRa Node – Price in Qatar

Industrial IP30 LoRa Node Controller (2 DI, 2 DO, EU868/US915 Sub 1G).

1 x micro-USB port console
2 x digital input interface
2 x digital output interface
LED indicators for the LoRa and Power status
9 ~ 48V DC and 24V AC input voltage range
Supports LoRaWAN protocol.

SKU: LN1140 Category: Planet Switches

Product Description

Wireless Transmission

Technology

LoRaWAN

Antenna Connector

1 × 50 Ω SMA Connectors (Center Pin: SMA Female)

Frequency

IN865, EU868, RU864, US915, AU915, KR920, AS923

Work Mode

OTAA/ABP Class A/B/C

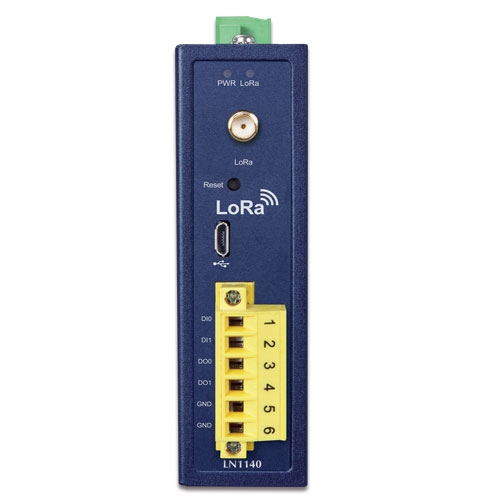

Data Interfaces

Interface Type

6-pin removable terminal block

IO Ports

Digital Input	Pin1(DI 0) Pin2(DI 1)	Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V)
Digital Output	Pin3(DO 0) Pin4(DO 1)	Input Load to 24V DC, 10mA max. Open collector to 24V DC, 100mA (max.)
GND	Pin 5, 6

Others

Configuration Port

1 × Micro USB

LED Indicators

1 × PWR, 1 × LoRa

Built-in Sensor

Temperature sensor

Physical Characteristics

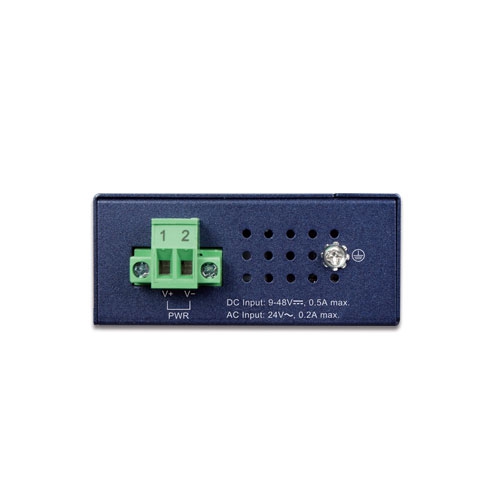

Power Connector

2-pin removable terminal block

Power Supply

9 ~ 48V DC, 24V AC

Ingress Protection

IP30

Operating Temperature

-40°C to +75°C

Relative Humidity

5% to 95% (non-condensing)

Dimensions

33 x 70 x 104 mm

Weight

218 g

Installation

DIN-rail or wall mounting

Standards Conformance

Regulatory Compliance

CE, FCC
